STM32 Open IoT and IIoT Gateways (P10 - P12)
Features
|
Features |
 |
|---|---|
|
Open IoT gateway |
|
|
ESD protection for the RS485 data line |
|
|
Power supply: +12 to +30 VDC |
|
|
Transmission speed up to 115200 bps |
|
|
Tx, Rx and power LED indicators |
|
|
RS485 embedded termination 120 ohm |
|
|
Operating temperatures: -40°C to +75°C |
|
|
DIN-rail mounting |
|
|
Dimensions: 98x56.4x22.5 mm |
|
|
3 years warranty |
|
|
Customization of OEM is welcomed |
Frame ground FG
Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.
Frame Ground FG connection reference drawing is provided below.
If earth ground is not available FG can be left floating or it can be connected with the power supply GND.
Specifications
|
Redisage PN |
P10 |
P11 |
P12 |
|
|
Ports |
RS232 |
4x |
- |
2x |
|
RS485 |
- |
4x |
2x |
|
|
RS232/RS485 |
- |
- |
- |
|
|
Microcontroller |
STM32 |
|||
|
WiFi |
N/A | |||
|
Bluetooth |
N/A | |||
|
SMA socket connector for WiFi/BT antenna |
 |
|||
|
Tactile switch |
 |
|||
|
Power |
Voltage |
12-30 VDC |
||
|
Power |
< 1 W |
|||
|
Frame ground protection |
yes |
|||
|
Baud rate |
up to 115200 bps |
|||
|
LED indicators |
power, link activity, programmable RGB |
|||
|
RS485 termination |
120 ohm manually enabled |
|||
|
Connector |
RS232/RS485 |
8-pin terminal block max. 2.5 mm2 wire |
||
|
Power |
3-pin terminal block max. 2.5 mm2 wire |
|||
|
Ethernet |
RJ45 |
|||
|
Transmission |
RS485 |
max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps |
||
|
RS232 |
max. 15 m at 115.2 kbps |
|||
|
Mounting and enclosure |
DIN rail, plastic PA - UL 94 V0, black/green |
|||
|
Temperatures |
-40°C to +75°C operating and storage |
|||
|
Humidity |
10 - 90% RH, non-condensing |
|||
|
ESD protection |
±4 kV contact discharge / ±8 kV air discharge |
|||
|
Certification |
CE, RoHS |
|||
LED indicators
| Gateways P10 - P12 |
||
 |
||
| LED indicator | Color | Function |
| PW | Blue | Power |
| L1 | Green | LED 1 |
| L2 | Green | LED 2 |
| L3 | Yellow | LED 3 |
| L4 | Red | LED 4 |
| L5 | Red | LED 5 |
Pin assignments
|
P10
|
P11
|
|
P12
|
|
Board overview
The complete Open IoT and IIoT Gateway kit consists of:
- developer module
- power supply module
- RJ45 network adapter

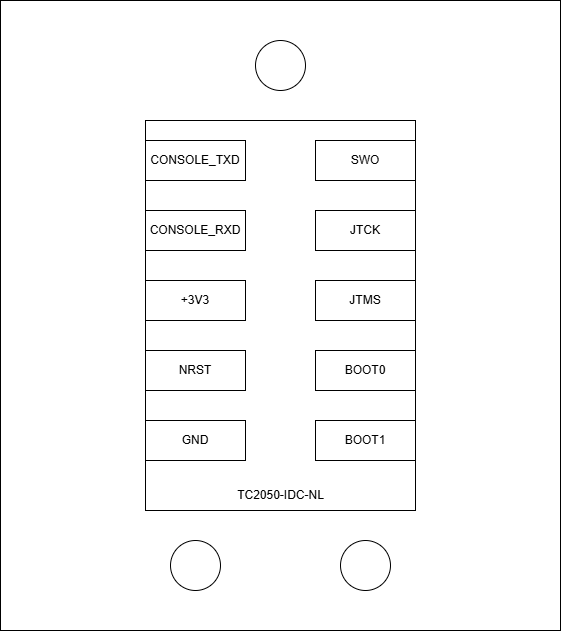

- hardware programmer (TagConnect + adapter for ST-LINK)
Main Board
Power Supply Board
Power input & RS232/RS485 ports
- Vcc1, Vcc2 - power supply input 12-30 VDC
- FG - frame ground
- GND - power supply ground
RS232/RS485 ports depend on the device variant.
Ethernet
To support the Ethernet network interface communication, the network adapter available in the kit must be installed on the module (pay attention to its correct installation). This interface is supported by the external IP101G physical layer which communicates with the STM32 microcontroller.
