Data Sheet

STM32 Open IoT and IIoT Gateways (P10 - P12)

Open IoT Gateway is also called as a PAC (Programmable Automation Controller). PAC products combine the functionality and openness of PC, the reliability of a programmable logic unit like PLC and the intelligence of I/O modules with flexible software tools for a wide range of applications from data acquisition, process control, motion control to energy and building management.

Our PAC family includes FreeRTOS PACs for different requirements in OS, CPU and development platforms.

The P10 - P12 gateways are based on STM32 ARM Cortex-M4.

P10 P11 P12


Features

  • Open IoT gateway
  • ESD protection for the RS485 data line
  • Power supply: +12 to +30 VDC
  • Transmission speed up to 115200 bps
  • 10/100 Mb/s Fast Ethernet standard
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • Operating temperatures: -40°C to +75°C
  • DIN-rail mounting
  • Dimensions: 98x56.4x22.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

Specifications‎‎‎

Redisage PN

P10

P11

P12

Ports

RS232

4x

-

2x

RS485

-

4x

2x

RS232/RS485

-

-

-

Microcontroller

STM32

WiFi

N/A

Bluetooth

N/A

SMA socket connector for WiFi/BT antenna

:x:

Tactile switch

:white_check_mark:

Power

Voltage

12-30 VDC

Power

< 1 W

Frame ground protection

yes

Baud rate

up to 115200 bps

LED indicators

power, link activity, programmable RGB

RS485 termination

120 ohm manually enabled

Connector

RS232/RS485

8-pin terminal block max. 2.5 mm2 wire

Power

3-pin terminal block max. 2.5 mm2 wire

Ethernet

RJ45

Transmission
distance


RS485

max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps
(Belden 9841 2P twisted-pair cable, if different cables are used,
the transmission distance may change)

RS232

max. 15 m at 115.2 kbps

Mounting and enclosure

DIN rail, plastic PA - UL 94 V0, black/green

Temperatures

-40°C to +75°C operating and storage

Humidity

10 - 90% RH, non-condensing

ESD protection

±4 kV contact discharge / ±8 kV air discharge

Certification

CE, RoHS


Variants

P10 - Open IoT and IIoT Gateway 4 x RS232


P11 - Open IoT and IIoT Gateway 4 x RS485


P12 - Open IoT and IIoT Gateway 2 x RS232 & 2 x RS485


Frame ground FG

Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.

Frame Ground FG connection reference drawing is provided below.

If earth ground is not available FG can be left floating or it can be connected with the power supply GND.


Pin assignments

P10

P10 Name Plate Label v1 #1090.png

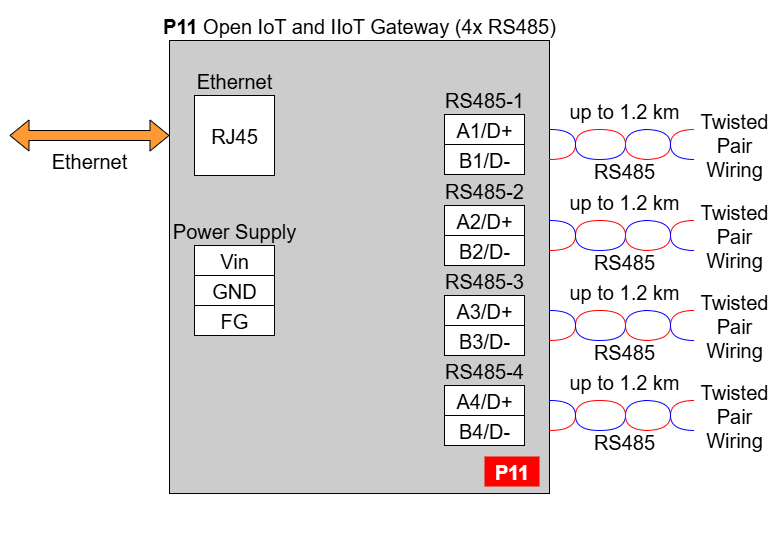

P11

P11 Name Plate Label v1 #1091.png

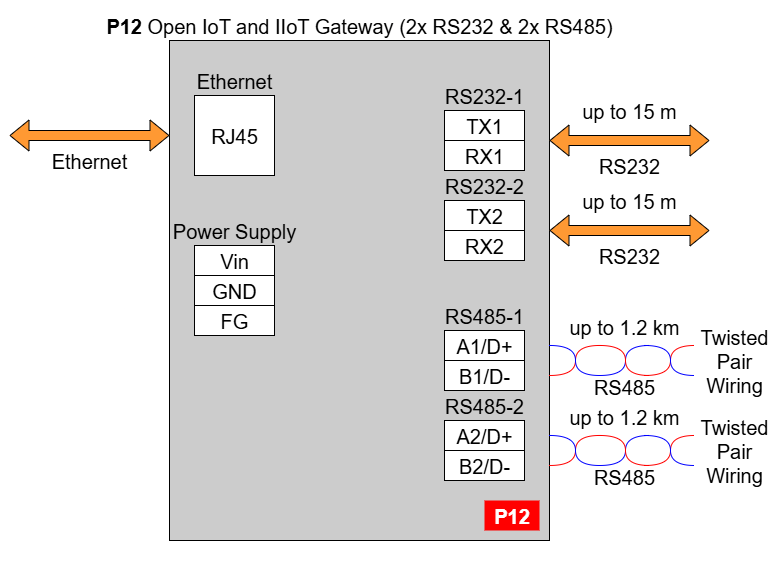

P12

P12 Name Plate Label v1 #1089.png


Enclosure dimensions

2U Module Enclosure
98 x 22.5 x 56.4
Units: mm

image (3).webp


LED indicators

  • PW LED Blue - Power
  • L1 - LED 1
  • L2 - LED 2
  • L3 - LED 3
  • L4 - LED 4
  • L5 - LED 5



Additional notes

Products family sample photo

https://redisage.com

DISCLAMER NOTES
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Datasheet-ID:

SR-D
