Data Sheet
ESP32 Open IoT and IIoT Gateways (P01 & P02)
Open IoT Gateway is also called as a PAC (Programmable Automation Controller). PAC products combine the functionality and openness of a PC, the reliability of a programmable logic unit like PLC and the intelligence of I/O modules with flexible software tools for a wide range of applications from data acquisition, process control, motion control to energy and building management.
Our PAC family includes FreeRTOS PACs and MicroPython PACs for different requirements in OS, CPU and development platform.
The P01 and P02 Gateways are based on ESP32 Xtensa LX6.
|
P01 P02
|
Features
|
|---|
Specifications
|
Redisage PN |
P01 |
P02 |
|
|
Ports |
RS232 |
- |
- |
|
RS485 |
- |
- |
|
|
RS232/RS485 |
2x |
2x |
|
|
Microcontroller |
ESP32 |
||
|
WiFi |
N/A |
802.11 b/g/n 150 Mbps / 2.4 GHz |
|
|
Bluetooth |
N/A |
v4.2 BR/EDR and BLE |
|
|
SMA socket connector for WiFi/BT antenna |
|
|
|
|
Tactile switch |
|
|
|
|
Power |
Voltage |
12-30 VDC |
|
|
Power |
< 1 W |
||
|
Frame ground protection |
yes |
||
|
Baud rate |
up to 115200 bps |
||
|
LED indicators |
power, link activity, programmable RGB |
||
|
RS485 termination |
120 ohm manually enabled |
||
|
Connector |
RS232/RS485 |
8-pin terminal block max. 2.5 mm2 wire |
|
|
Power |
3-pin terminal block max. 2.5 mm2 wire |
||
|
Ethernet |
RJ45 |
||
|
Transmission |
RS485 |
max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps |
|
|
RS232 |
max. 15 m at 115.2 kbps |
||
|
Mounting and enclosure |
DIN rail, plastic PA - UL 94 V0, black/green |
||
|
Temperatures |
-40°C to +75°C operating and storage |
||
|
Humidity |
10 - 90% RH, non-condensing |
||
|
ESD protection |
±4 kV contact discharge / ±8 kV air discharge |
||
|
Certification |
CE, RoHS |
||
Variants
P01 - Open IoT and IIoT Gateway 2 x RS232/RS485
In the P01 gateway user should use only RS232 or only RS485 interface of one port as they occupy the same internal bus of the device.
P02 - Open IoT and IIoT Gateway 2 x RS232/RS485 + WiFi
In the P02 gateway user should use only RS232 or only RS485 interface of one port as they occupy the same internal bus of the device.
Frame ground FG
Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.
Frame Ground FG connection reference drawing is provided below.
If earth ground is not available FG can be left floating or it can be connected with the power supply GND.
Pin assignments
|

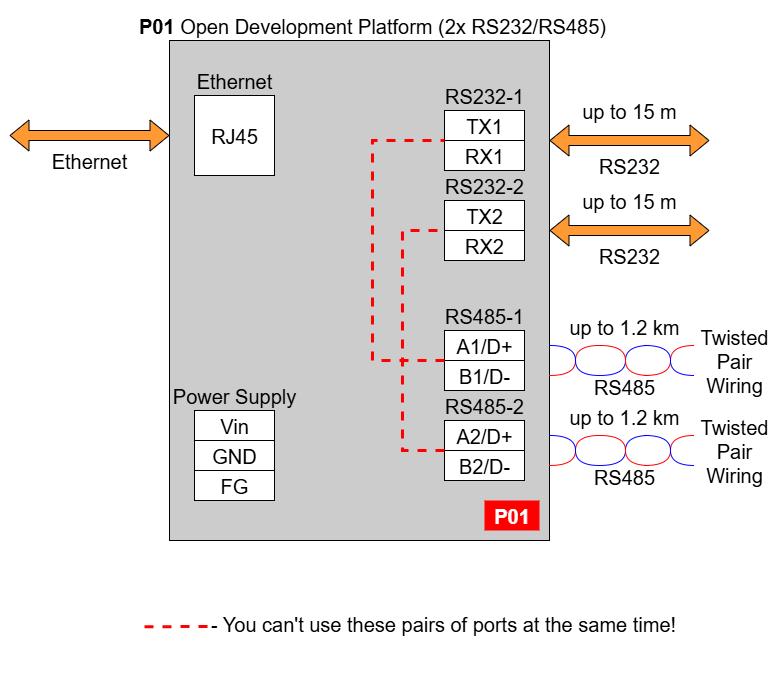

P01
|

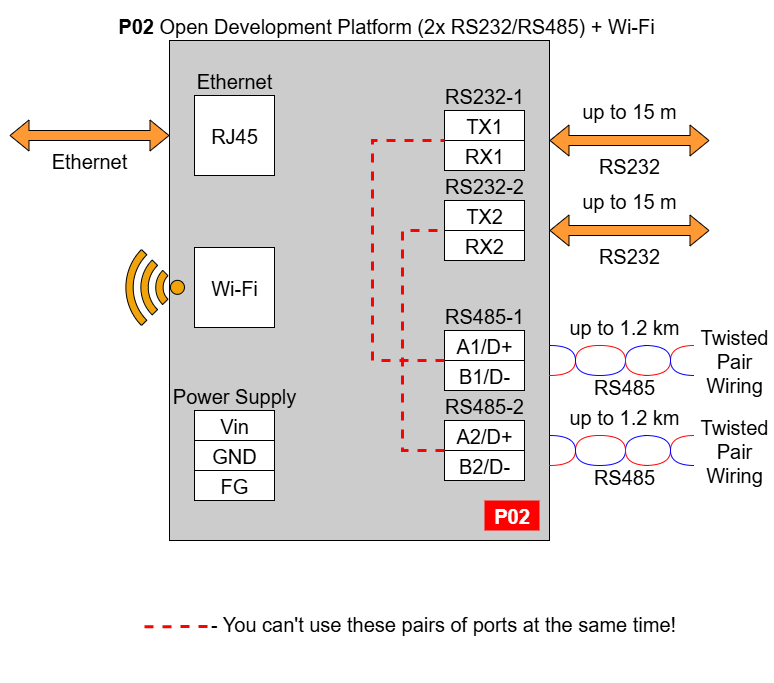

P02
|
Enclosure dimensions
2U Module Enclosure
98 x 22.5 x 56.4
Units: mm
LED indicators
P01
- PW LED Blue - Power
- ETH LED Green - Network activity
- ST LED Red / Green / Blue - programmable LED
P02
- PW LED Blue - Power
- ETH LED Green - Network activity
- ST LED Red / Green / Blue - programmable LED
Additional notes
