Data Sheet

RS232 RS485 Converters (C10 - C13)

C10 C11 C12 C13


Features

  • Automatic RS485 direction control
  • ESD protection for the RS232/485 data line
  • Power supply: +12 to +30 VDC or 24 VAC
  • 3000 VDC isolation protection on the RS-485 side
  • Transmission speed up to 115200 bps
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • Operating temperatures: -40°C to +75°C
  • DIN-rail mounting
  • Compact size - single module format (1M)
  • Dimensions: 90x56.4x17.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

Introduction

Most industrial computer systems provide standard RS232 serial ports. Though widely accepted, RS232 has limited transmission speed, range, and networking capabilities.

The RS485 standards overcome these limitations by using differential voltage lines for data and control signals.

The C10 makes it easy to build an industrial-grade, long-distance communication system using standard PC hardware, as it converts RS232 signals into isolated RS485 signals without any need to change any hardware or software.

The design of the isolation between the C10 - C12 is different. If the user wants to supply power from the PLC/PC, the C10 or C12 should be used, otherwise, the isolation will be broken.

Specification

Redisage PN
C10 C11 C12 C13
Converter ports
1 x RS232 & 1 x RS485
Power
Voltage

12-30 VDC /

24 VAC

12-30 VDC
Power < 1 W
Frame ground protection
yes
Serial interface
RS232 TxD, Rx, GND
RS485 A, B

3000 VDC isolation

3-way on RS232 side on RS485 side N/A
Baud rate
up to 115200 bps
LED indicators
communication Tx, Rx and power
RS485 termination
120 ohm manually enabled
Connector
RS232 3-pin terminal block max. 2.5 mm2 wire
RS485 3-pin terminal block max. 2.5 mm2 wire
Power 3-pin terminal block max. 2.5 mm2 wire
Transmission distance
RS485 max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps
(Belden 9841 2P twisted-pair cable, if different cables are used,
the transmission distance may change)
RS232 max. 15 m at 115.2 kbps
Mounting and enclosure
DIN rail, plastic PA - UL 94 V0, black/green
Temperatures -40°C to +75°C operating and storage
Humidity 10 - 90% RH, non-condensing

ESD protection

±4 kV contact discharge / ±8 kV air discharge

Certification

CE, RoHS

Variants

C10 - THREE-WAY Isolated

C11 - RS232 Isolated Side

C12 - RS485 Isolated Side

C13 - Non-isolated (Active)

Frame ground FG

Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.

Frame Ground FG connection reference drawing is provided below.

If earth ground is not available FG can be left floating or it can be connected with the power supply GND.

Pin assignments

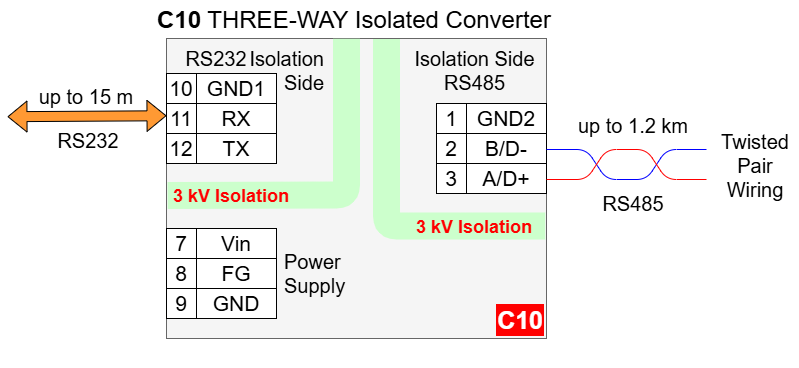

C10

image (1).webp

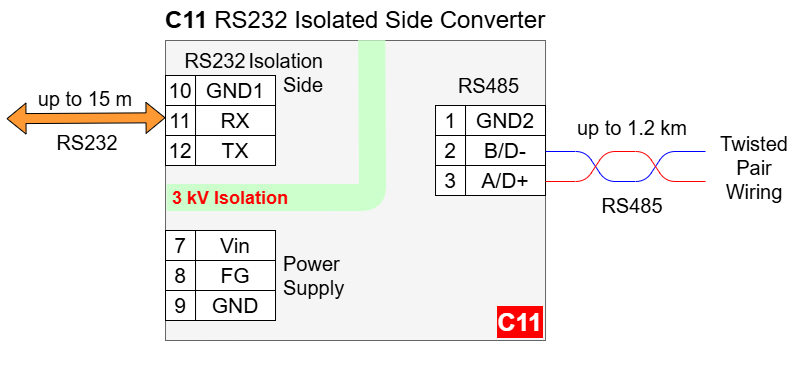

C11

image (2).webp

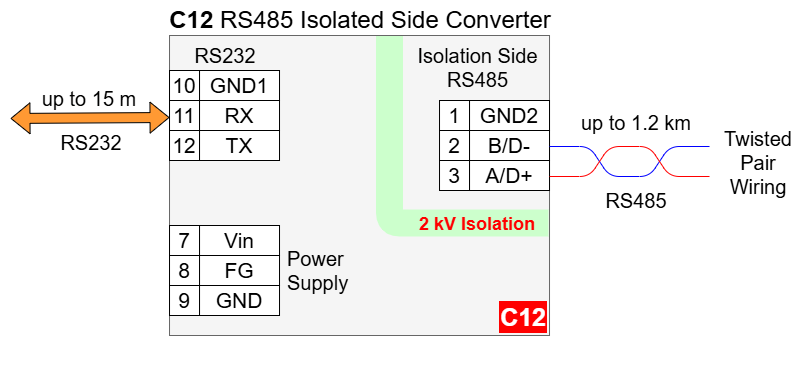

C12

image (3).webp

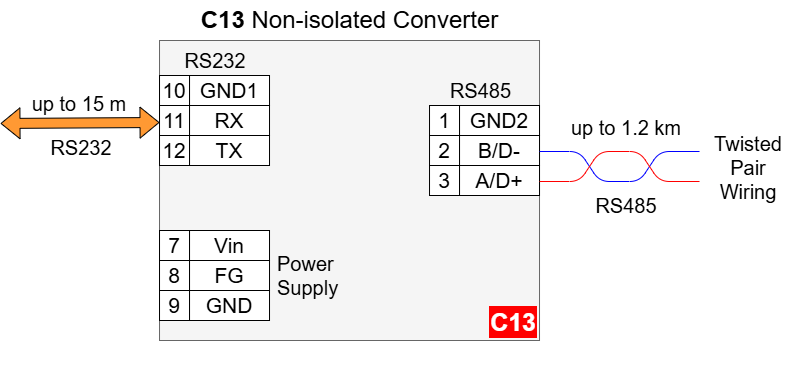

C13

image (4).webp

Enclosure dimensions

1U Module Enclosure
98 x 17.5 x 56.4
Units: mm


Additional notes

Products family sample photo

https://redisage.com

DISCLAMER NOTES
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Datasheet-ID:

SC-D
