Data Sheet

{{@218}}

P01 P02

5e0098af-74b7-4f6a-84e2-63efb7875497 (1).png

Features

  • Open IoT gateway
  • ESD protection for the RS485 data line
  • Power supply: +12 to +30 VDC
  • Transmission speed up to 115200 bps
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • Optional WiFi
  • Operating temperatures: -40°C to +75°C
  • DIN-rail mounting
  • Dimensions: 90x56.4x22.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

{{@190#bkmrk-specifications%E2%80%8E%E2%80%8E%E2%80%8E}}

{{@190#bkmrk-redisage-pn-p01-p02-}}

Variants

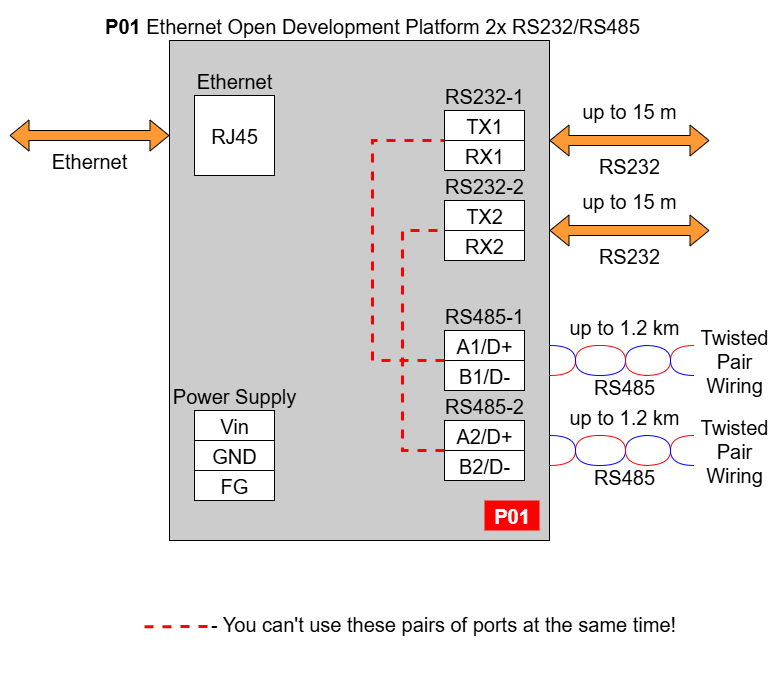

P01 - Open IoT and IIoT Gateway 2 x RS232/RS485

In the P01 gateway user should use only RS232 or only RS485 interface of one port as they occupy the same internal bus of the device.

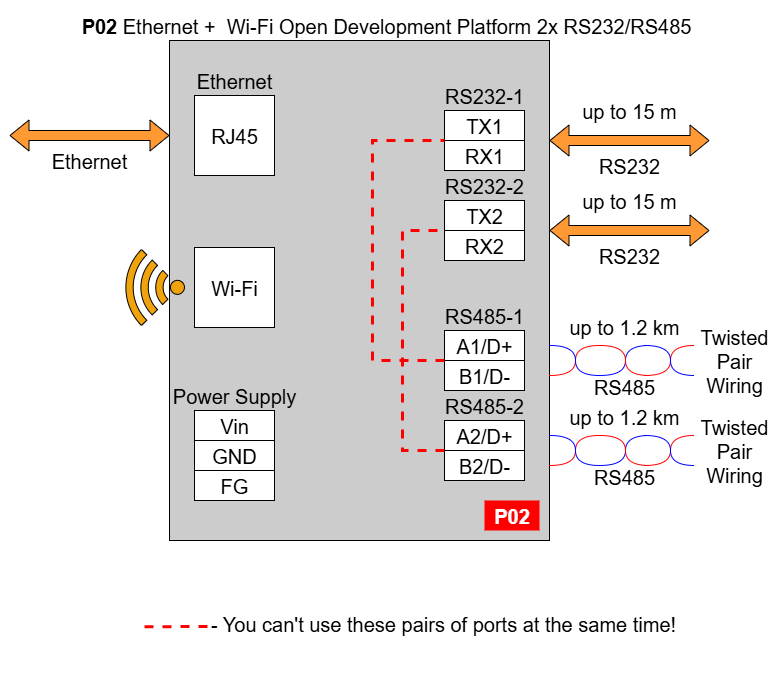

P02 - Open IoT and IIoT Gateway 2 x RS232/RS485 + WiFi

In the P02 gateway user should use only RS232 or only RS485 interface of one port as they occupy the same internal bus of the device. It means, don't use pairs: RS232-1 & RS485-1 at the same time and RS232-2 & RS485-2 at the same time!

{{@169}}

{{@190#bkmrk-pin-assignments}}

{{@190#bkmrk-p01-%C2%A0-p02-%C2%A0}}

{{@221#bkmrk-enclosure-dimensions-2}}

{{@221#bkmrk-2u-module-enclosure9-1}}

{{@221#bkmrk--2}}

LED indicators

P01

  • PW LED Blue - Power
  • ETH LED Green - Network activity
  • ST LED Red / Green / Blue - programmable LED


P02

  • PW LED Blue - Power
  • ETH LED Green - Network activity
  • ST LED Red / Green / Blue - programmable LED
