Booting

{{@273#bkmrk-tiger-city-imx-embed}}

• {{@143#bkmrk-emmc}}
• {{@143#bkmrk-sd-card}}
• {{@143#bkmrk-booting-after-the-po}}

eMMC

DIP switches positions

To boot from the eMMC the DIP switch No. 1 needs to be in the position shown in the picture below.

(...)

Power supply

Connect a power supply to the pins shown in the picture below. The suggested power supply is a DC voltage in the range of 12-24 V.

{{@274#bkmrk--2}}

First boot

The connected power supply should initiate the first boot.

Console

Booting logs are displayed in the console, indicating a proper boot from the eMMC, as shown in the picture below.

SD card

DIP switches positions

To boot from the SD card the DIP switch No. 1 needs to be in the position shown in the picture below.

(...)

Power supply

Connect a power supply to the pins shown in the picture below. The suggested power supply is a DC voltage in the range of 12-24 V.

{{@274#bkmrk--2}}

First boot

The connected power supply should initiate the first boot.

Console

Booting logs are displayed in the console, indicating a proper boot from the SD card, as shown on the picture below.

(...)

Booting after the power-off command

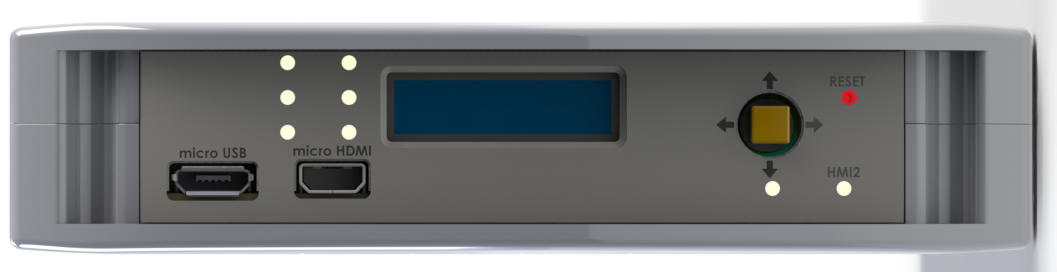

If the device is turned off by inputting the power-off command in the terminal, the previous boot methods have to be initiated via the reset button placed on the front panel. Its placement is shown in the picture below.
