Data Sheet

RS485 HUBs (H01 - H03)

H01 H02 H03

Features

Isolated RS485 1:3 HUB
ESD protection for the RS485 data line
Power supply: +12 to +30 VDC or 24 VAC
3000 VDC isolation protection
Transmission speed up to 115200 bps
Tx, Rx and power LED indicators
RS485 embedded termination 120 ohm
Operating temperatures: -40°C to +75°C
DIN-rail mounting
Compact size - single module format (1M)
Dimensions: 90x56.4x17.5 mm
3 years warranty
Customization of OEM is welcomed

Introduction

The products from the H01-H03 family are reliable RS485 signal hubs made to work with variable transmission speeds. They allow flexible branching of the 1:3 interface while simultaneously protecting the attached devices thanks to internal 3 kV/DC galvanic isolation. Additionally, dedicated EMC protections will improve transmission quality and limit the impact of interference typical for an industrial environment.

Specifications

Redisage PN		H01	H02	H03
Input		1 x RS485 channel; Data+, Data-
Output		3 x RS485 channels; Data+, Data-
Power	Voltage	12-30 VDC / 24 VAC	12-30 VDC
Power	Power	< 1 W
Frame ground protection		yes
3000 VDC isolation		3-way	branched side	main side
Baud rate		up to 115200 bps
LED indicators		communication Tx, Rx and power
RS485 termination		120 ohm manually enabled
Connector	RS485	8-pin terminal block max. 2.5 mm² wire
Connector	Power	3-pin terminal block max. 2.5 mm² wire
Transmission distance	RS485	max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if diﬀerent cables are used, the transmission distance may change)
Mounting and enclosure		DIN rail, plastic PA - UL 94 V0, black/green
Temperatures		-40°C to +75°C operating and storage
Humidity		10 - 90% RH, non-condensing
ESD protection		±4 kV contact discharge / ±8 kV air discharge
Certification		CE, RoHS

Variants

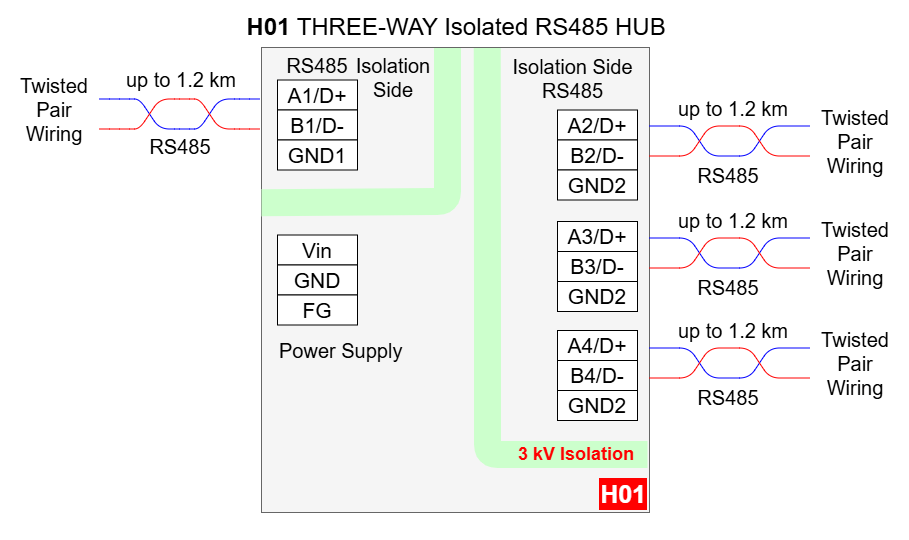

H01 - THREE-WAY Isolated RS485 HUB

H02 - Branched Side Isolated RS485 HUB

H03 - Main Side Isolated RS485 HUB

Frame ground FG

Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.

Frame Ground FG connection reference drawing is provided below.

If earth ground is not available FG can be left floating or it can be connected with the power supply GND.

Pin assignments

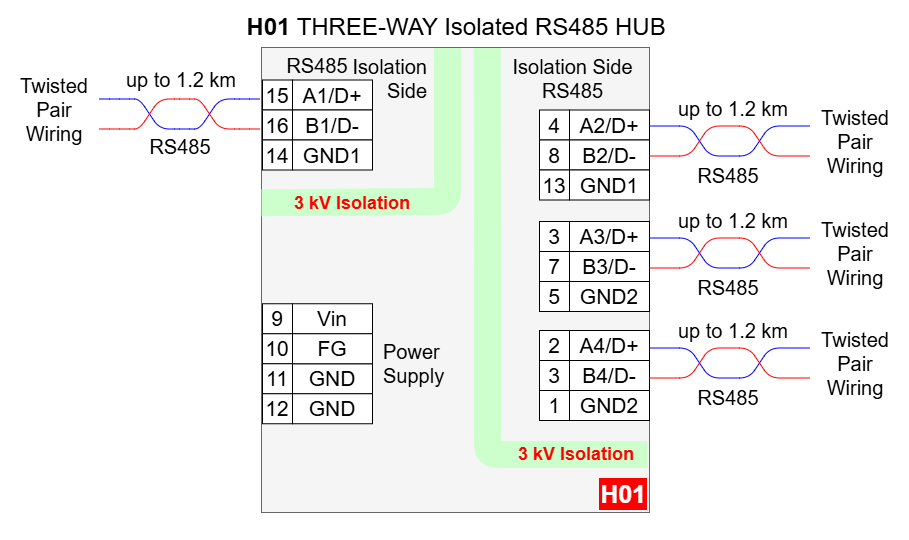

H01

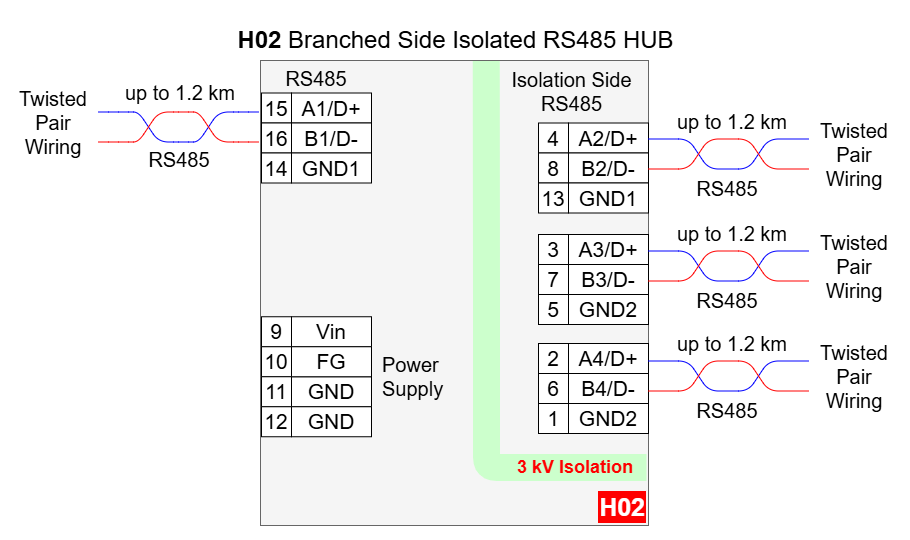

H02

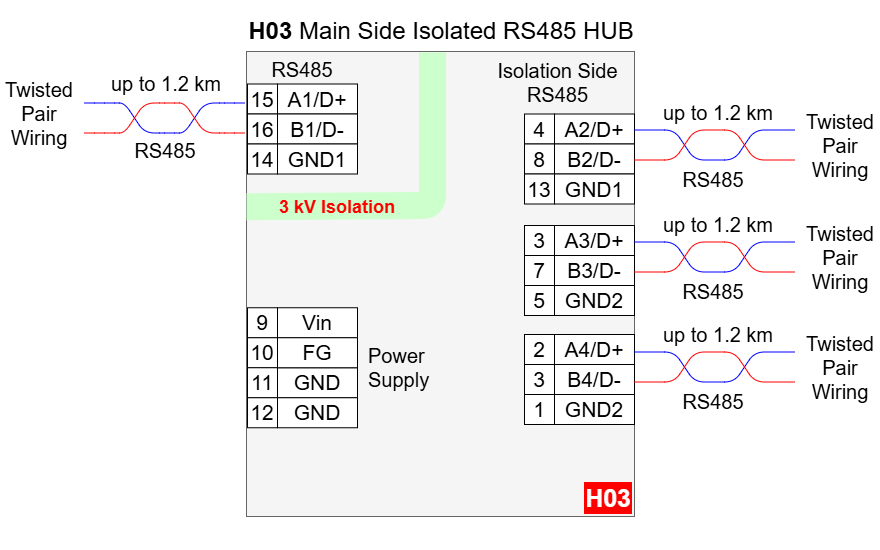

H03

Enclosure dimensions

1U Module Enclosure
98 x 17.5 x 56.4
Units: mm

Additional notes

Related information and links
Ordering information	Accessories	Similar products

Products family sample photo
