Data Sheet

RS232 RS485 Repeaters (R01 - R04)

R01 R02 R03 R04

Features

Automatic RS485 direction control
ESD protection for the RS232/485 data line
Power supply: +12 to +30 VDC or 24 VAC
3000 VDC isolation protection on the RS485 side
Transmission speed up to 115200 bps
Tx, Rx and power LED indicators
RS485 embedded termination 120 ohm
Operating temperatures: -40°C to +75°C
DIN-rail mounting
Compact size - single module format (1M)
Dimensions: 90x56.4x17.5 mm
3 years warranty
Customization of OEM is welcomed

Introduction

The R01 provides 3-way optical isolation between both RS485 sides and power supply. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS485 system can be expanded beyond the 256 nodes limitation imposed by the standard.

The R02 is exactly the same as the R01, except for the isolation range. The R02 has one RS485 side isolation.

The R03 separator module provides a complete full-duplex, 3-way electrical isolation channel between two RS232 devices. This isolation is an important consideration if a system uses different power sources, has noisy signals or must operate at different ground potentials.

The R04 is exactly the same as the R03, except for the isolation range. The R04 has one RS232 side isolation.

Specifications

Redisage PN		R01	R02	R03	R04
Repeater ports		2 x RS485		2 x RS232
Power	Voltage	12-30 VDC / 24 VAC	12-30 VDC	12-30 VDC / 24 VAC	12-30 VDC
Power	Power	< 1 W
Frame ground protection		yes
Serial interface	RS232	N/A		TxD, RxD, GND
Serial interface	RS485	A, B		N/A
3000 VDC isolation		3-way	single side	3-way	single side
Baud rate		up to 115200 bps
LED indicators		communication Tx, Rx and power
RS485 Termination		120 ohm manually enabled		N/A
Connector	RS232	N/A		3-pin terminal block max. 2.5 mm² wire
	RS485	3-pin terminal block max. 2.5 mm² wire		N/A
	Power	3-pin terminal block max. 2.5 mm² wire
Transmission distance	RS485	max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if diﬀerent cables are used, the transmission distance may change)
Transmission distance	RS232	max. 15 m at 115.2 kbps
Mounting and enclosure		DIN rail, plastic PA - UL 94 V0, black/green
Temperatures		-40°C to +75°C operating and storage
Humidity		10 - 90% RH, non-condensing
ESD protection		±4 kV contact discharge / ±8 kV air discharge
Certification		CE, RoHS

Variants

R01 - THREE-WAY Isolated RS485 Repeater

R02 - Isolated RS485 Repeater

R03 - 3-way Isolated RS232 Separator Repeater

R04 - Isolated RS232 Separator Repeater

Frame ground FG

Electronic circuits are constantly prone to electrostatic discharge ESD. Redisage Electronics modules feature a design for the frame ground terminal block FG. The frame ground provides a path for bypassing ESD, which provides enhanced static protection ESD abilities and ensures the module is more reliable. Connecting FG terminal block to the earth ground will bypass the ESD disturbances outside the device so will provide a better level of protection against ESD.

Frame Ground FG connection reference drawing is provided below.

If earth ground is not available FG can be left floating or it can be connected with the power supply GND.

Pin assignments

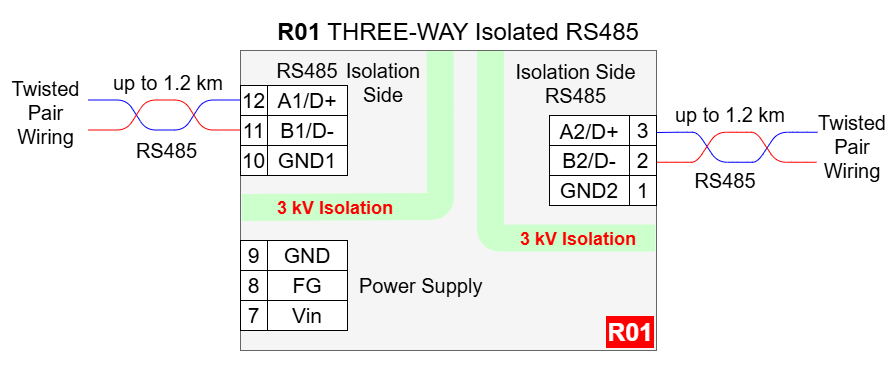

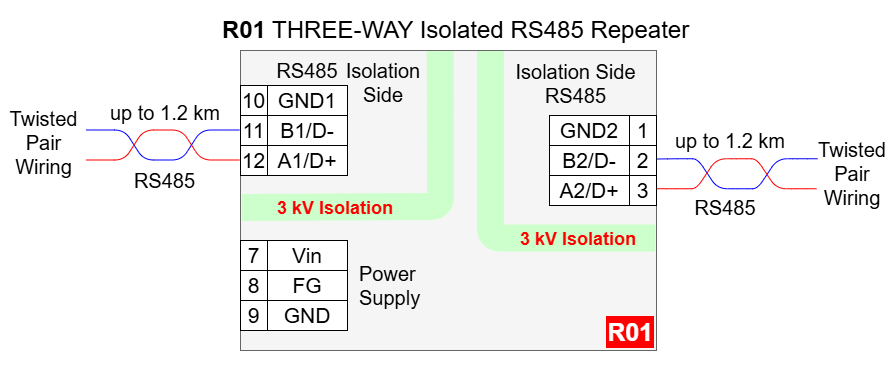

R01

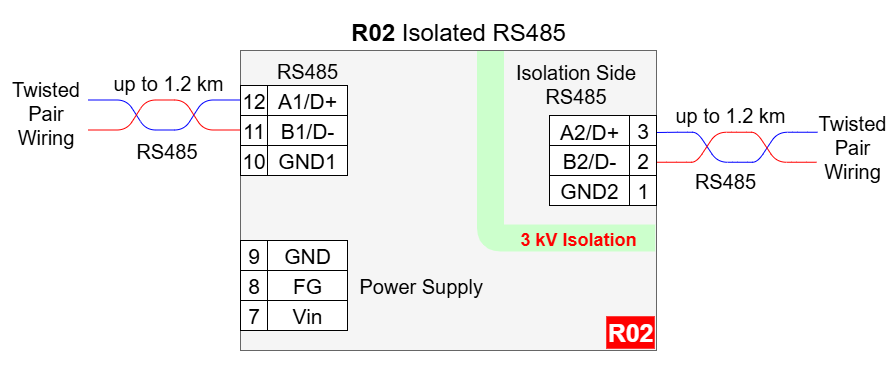

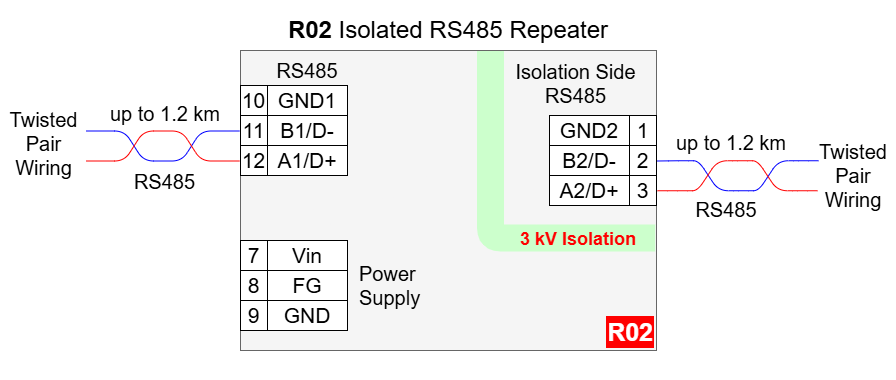

R02

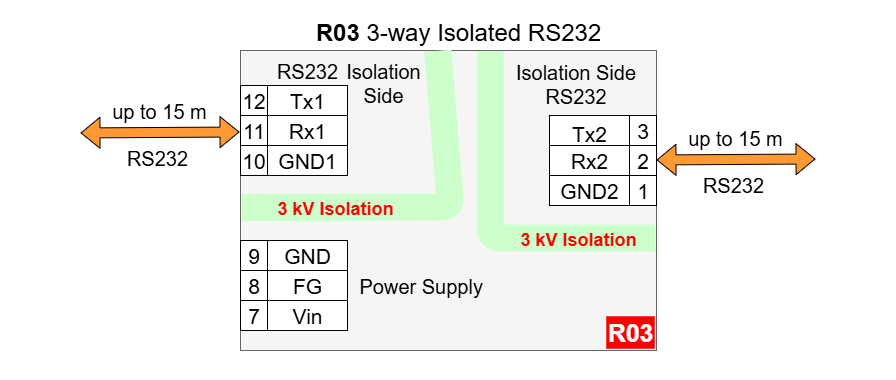

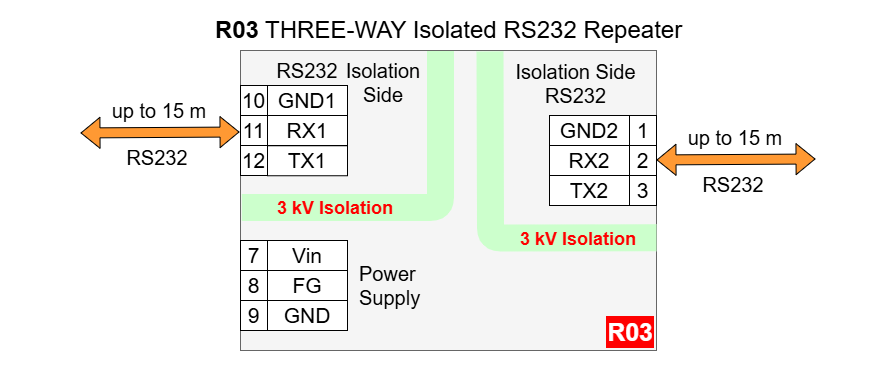

R03

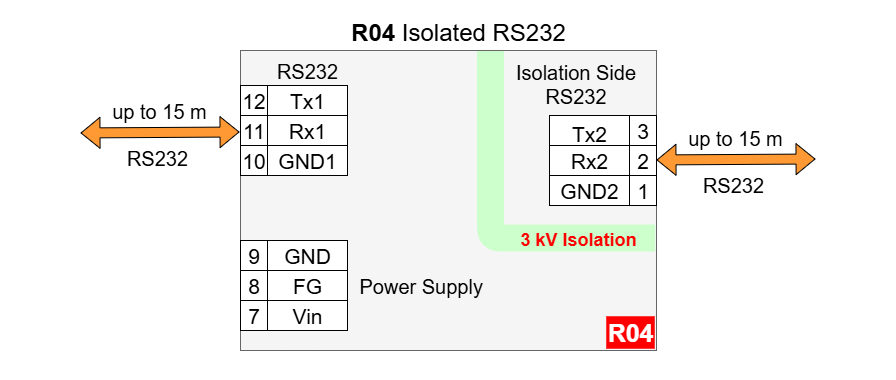

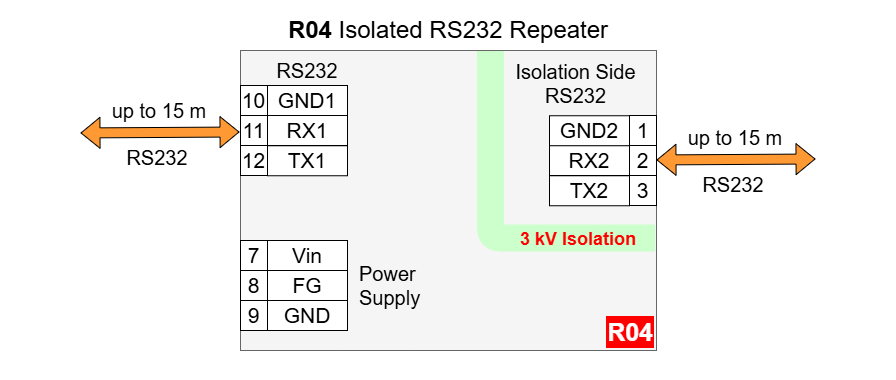

R04

Enclosure dimensions

1U Module Enclosure
98 x 17.5 x 56.4
Units: mm

Additional notes

Related information and links
Ordering information	Accessories	Similar products

Products family sample photo
