Data Sheet

{{@182}}

C30 C31 C32

eng_pl_C30-Wi-Fi-802-11bgn-Ethernet-10-100MB-2xRS232-Converter-28_2 (1).jpg

Features

  • Ethernet converter to RS232/RS485
  • ESD protection for the RS485 data line
  • Power supply: +12 to +30 VDC
  • Transmission speed up to 115200 bps
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • WiFi 802.11b/g/n 150 Mbps / 2.4 GHz
  • Operating temperatures: -40°C to +75°C
  • DIN rail mounting
  • Dimensions: 90x56.4x22.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

Introduction

C30 - C32 are a products family of reliable converters based on the ESP32 Xtensa LX6 microcontroller, extending the capabilities of industrial devices.

The addition of a network interface allows remote access and full control over a communication via a computer.

The user performs the basic configuration of transmission parameters in a browser or via a Telnet/serial console.

Dedicated EMC integrated circuits guarantee improved connection quality by limiting the impact of the interferences typical for an industrial environment.

{{@179#bkmrk-specifications}}

{{@179#bkmrk-redisage-pn-c30-c31-}}

Variants

C30 - Serial Port Server (2x RS232) + Wi-Fi

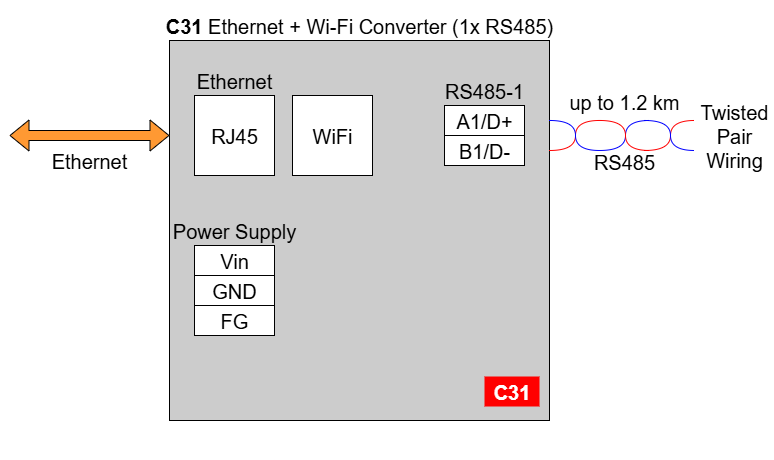

C31 - Serial Port Server (1x RS485) + Wi-Fi

C32 - Serial Port Server (2x RS232/RS485) + Wi-Fi

* In the C32 converter user should use only RS232 or only RS485 interface of one port as they occupy the same internal bus of the device. It means, don't use pairs: RS232-1 & RS485-1 at the same time and RS232-2 & RS485-2 at the same time!

{{@169}}

{{@179#bkmrk-pin-assignments}}

{{@179#bkmrk-c30-c31-c32}}

{{@221#bkmrk-enclosure-dimensions-2}}



{{@221#bkmrk-2u-module-enclosure9-1}}

{{@221#bkmrk--2}}

LED indicators

Converters C30 - C32


LED indicator

Color

Function

PW

Blue

Power

ETH

Green

Network activity

ST

Orange

Console mode

Red

Service mode



{{@221#bkmrk-enclosure-dimensions-2}}

{{@221#bkmrk-2u-module-enclosure9-1}}

{{@221#bkmrk--2}}

Getting started

Power supply

Ethernet converters C30 - C32 have wide voltage power input (12-30 VDC) and the power consumption is less than 1 W.

Check user manual before first launch.

Reset to Factory Defaults

Reset to factory defaults is possible on the web page in the device section or using the service mode.

{{@181#bkmrk-service-mode}}

{{@181#bkmrk-procedure-to-enter-s-1}}

{{@181#bkmrk-turn-off-the-power-o-1}}

{{@179#bkmrk-list-of-commands-in-}}

{{@179#bkmrk-command-description--1}}

{{@179#bkmrk-in-the-service-mode%2C}}



{{@168}}
