Configuration by the Web Page
Modbus TCP/RTU M-bus Gateways (G20, G30)
This page presents capabilities of the Converters configuration. First, make sure that the converter is connected to the power supply and to the LAN using a patchcord or wireless via Wi-Fi. If the device has no static IP set up, it will be necessary to obtain its IP address in the local network. User interface is mostly similar for all gateways, but some subpages might be different for several models depending on amount of interfaces. In order to avoid issues, click on a “Help” button in the top right corner on every page.

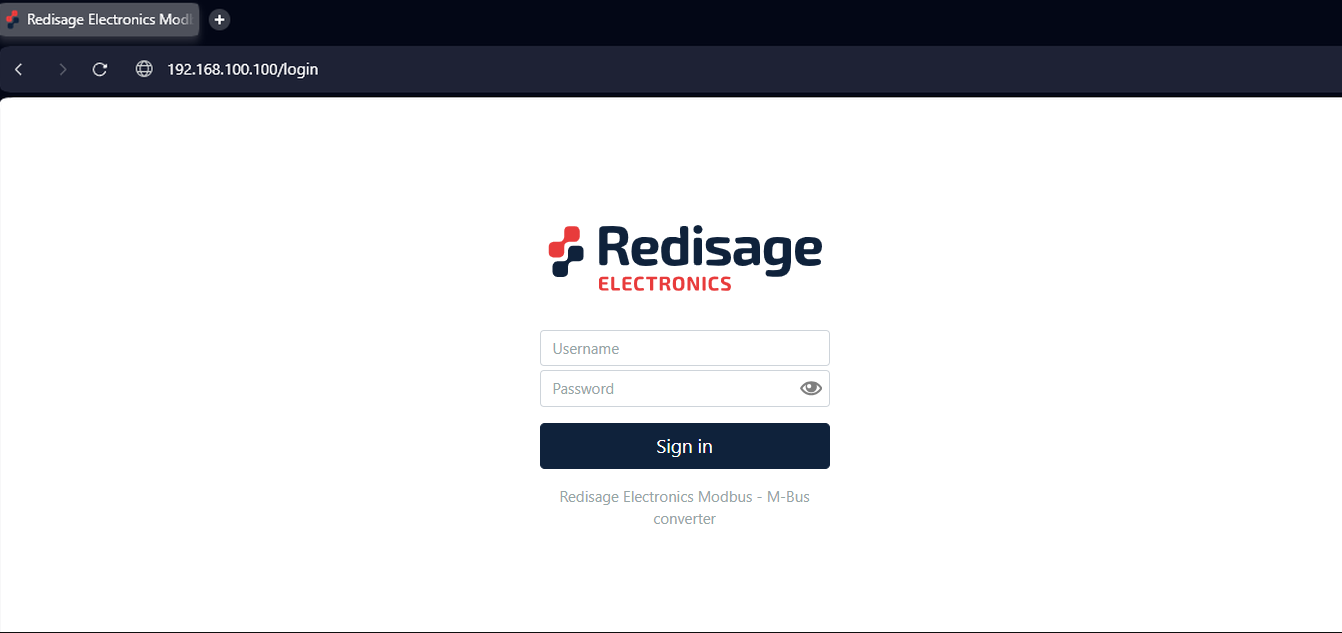

Login
To access the web page, open the browser, type the device’s IP address of the converter (default is 192.168.100.100). Then log in using user’s personal credentials. If it is a first configuration or the converter had a factory reset, use default login details (login: admin, password: admin123).
The configuration is available only if devices are connected to the same Local Area Network as the computer used for it.

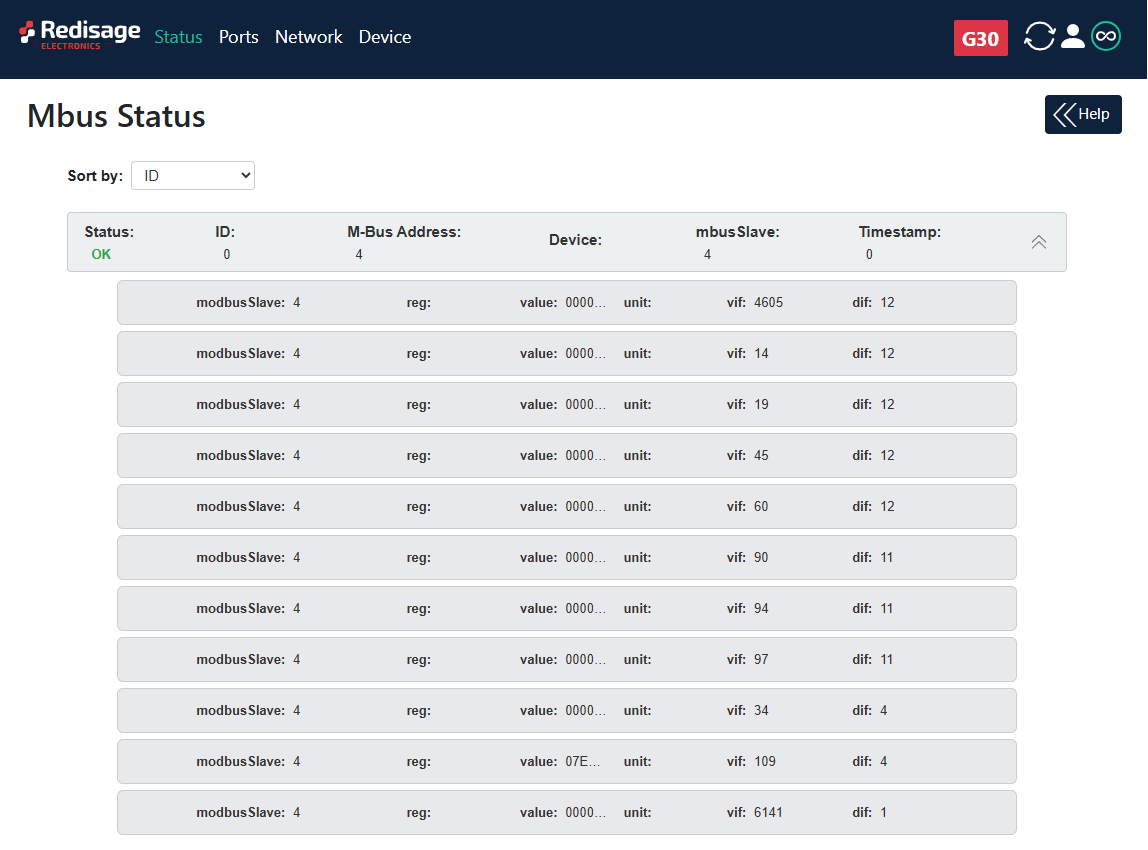

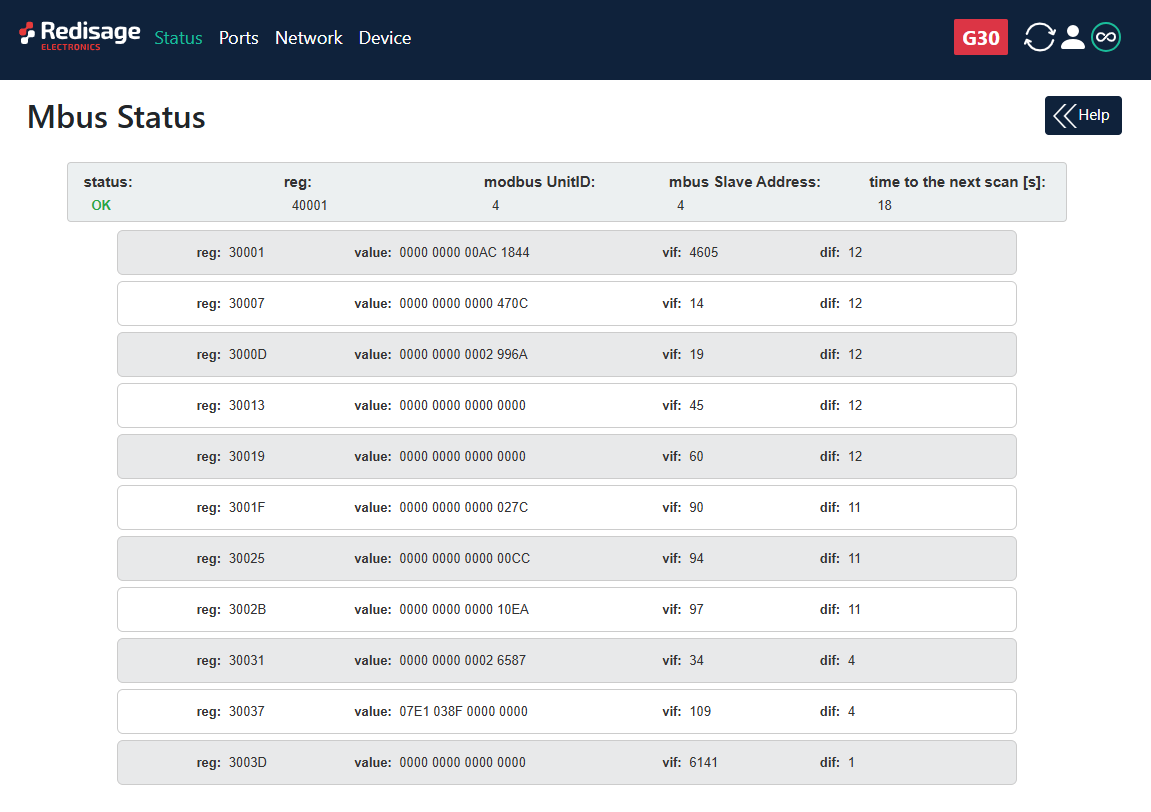

Status page
After a successful login, there should be an insight to a list of available connections. If there is more than one connection, it is possible to sort them by ID, timestamp or status.

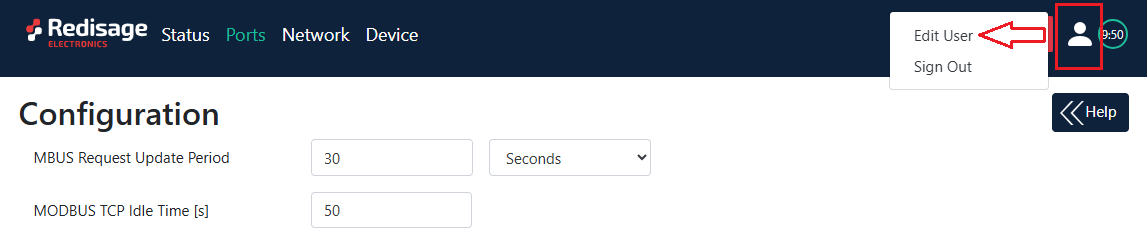

Changing username or password
After clicking “Edit User” under the user icon, it is possible to change the username or the password.
If login details were forgotten, it would be necessary to do a factory reset via a USB/UART converter and a serial console.

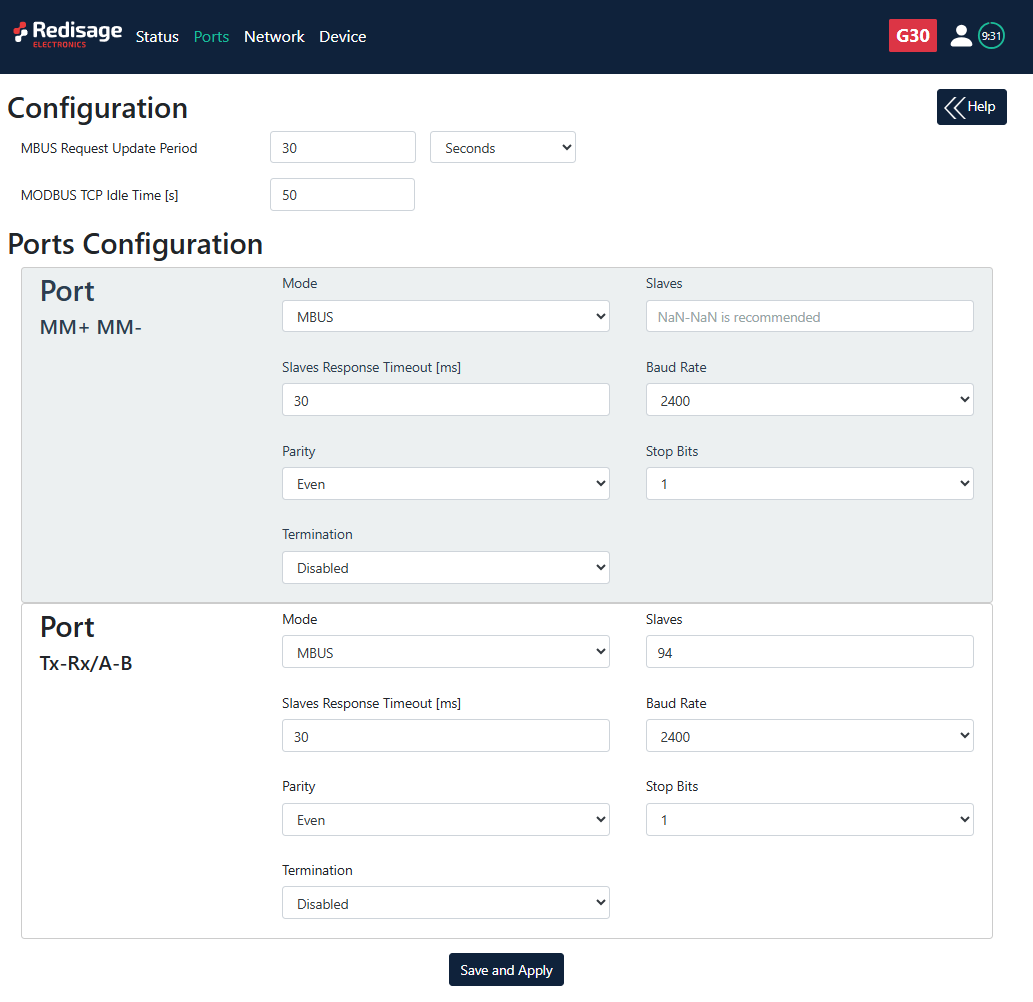

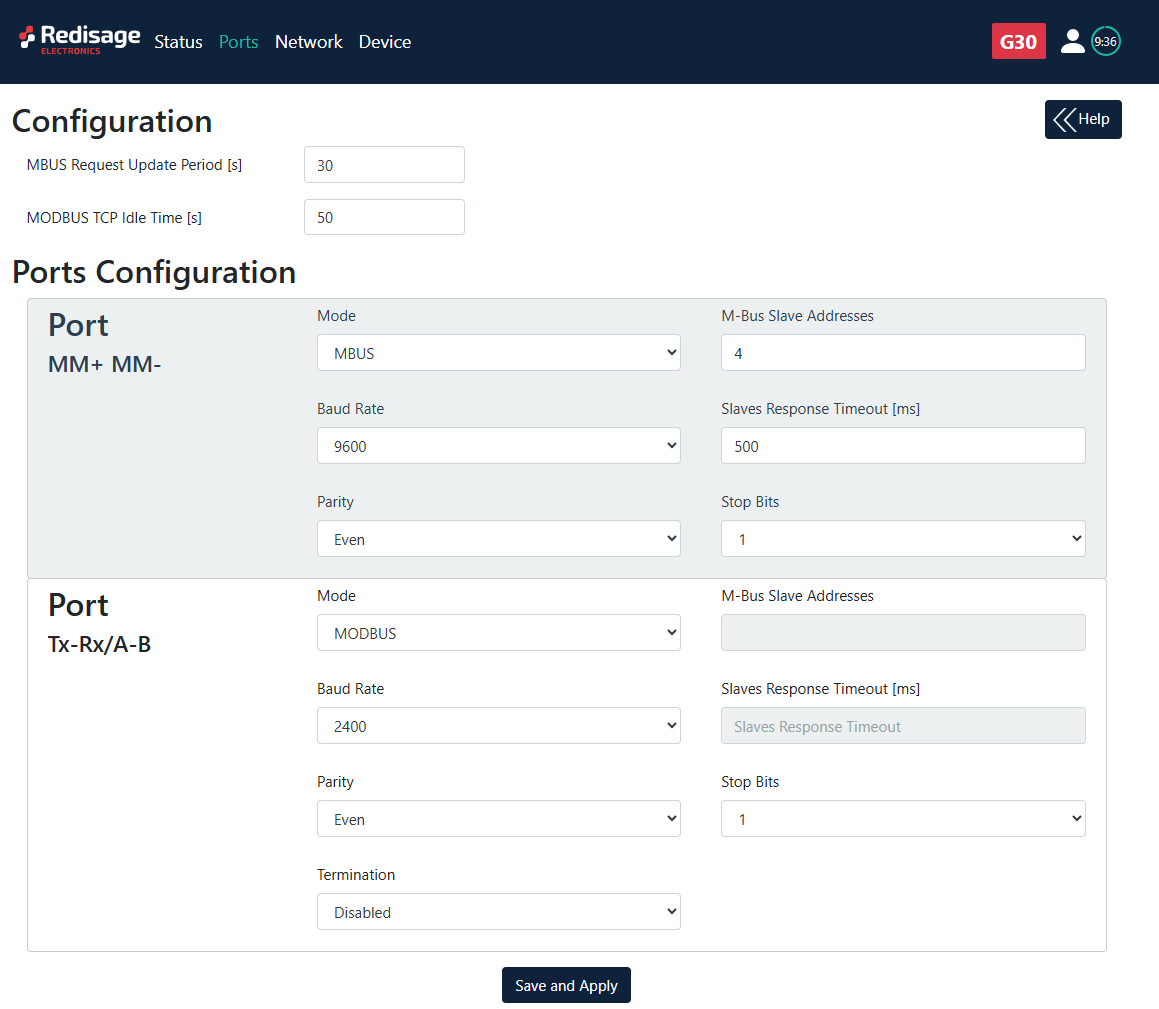

Ports configuration
|
Item |
Description |
|
|
MBUS Request Update Period |
Choose M-BUS Request Update period. |
|
|
MODBUS TCP Idle Time |
Choose Modbus TCP Idle Time. |
|
|
Mode |
MBUS |
Switch device's mode to M-Bus |
|
MODBUS |
Switch device's mode to Modbus |
|
|
Slaves |
Type amount of slave devices. |
|
|
Slaves Response Timeout |
Type slave devices response timeout. |
|
|
Baud Rate |
Choose baud rate. |
|
|
Parity |
Type of parity. |
|
|
Stop Bits |
Number of stop bits. |
|
|
Termination |
Enable RS termination. |
|
Make sure to save all the changes with “Save and Apply” button located on the bottom of the page.

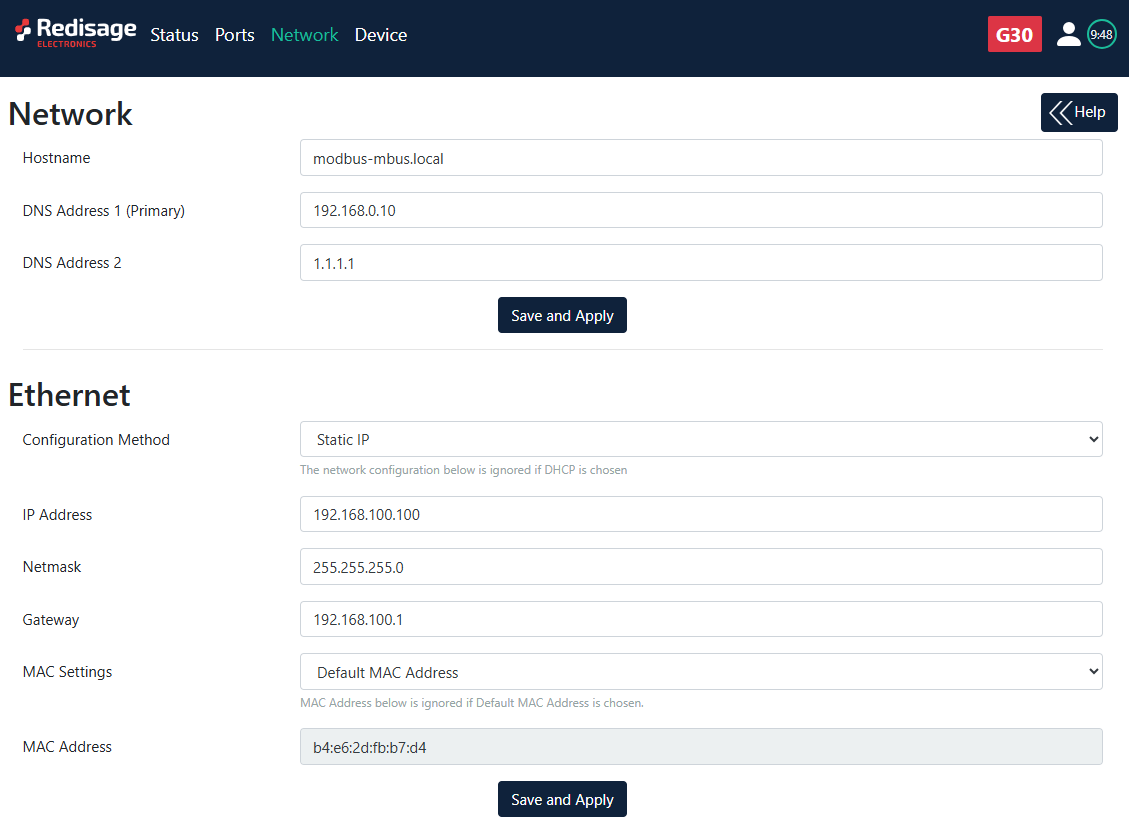

Network settings
In this section, network settings can be changed according to target LAN parameters.
|
Item |
Description |
|
Hostname |
Label that is assigned to the device. |
|
Configuration Method |
Enable/disable the DHCP server. If the DHCP server is disabled, the IP address of the device has to be set manually. |
|
IP Address |
IP address of the device. |
|
Netmask |
Netmask associated with the IP address. |
|
Gateway |
Gateway address currently used by the device. |
|
DNS Address |
Domain Name System used by the device. |
|
MAC Settings |
Allow setting the default MAC address or typing it manually. |
|
MAC Address |
Allow changing the physical address of the device. |
|

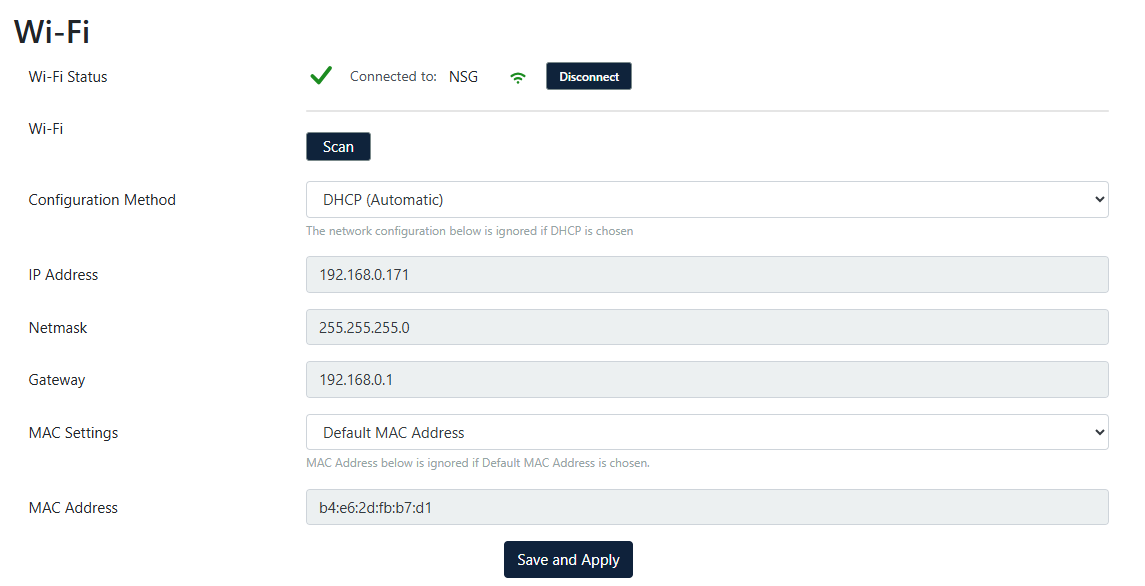

Wi-Fi (G30 only) |
Scan and choose your network. Click on chosen and type password. |
|

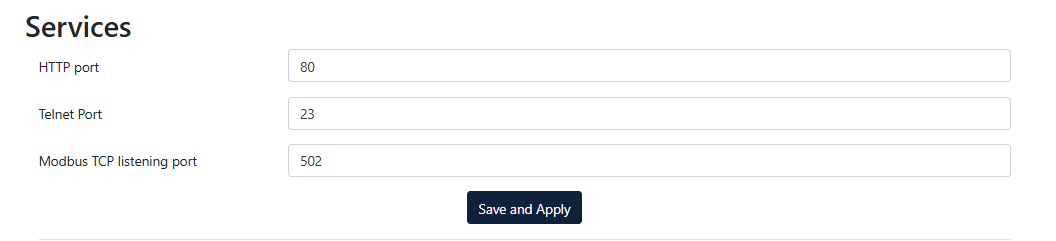

HTTP Port |
Determine the port of the control panel. |
|
Telnet Port |
Allow connection with the device via Telnet. |
|
Modbus TCP Listening Port |
Used as an entry point for new Modbus TCP connections. |
It is possible to obtain dynamic IP address. Just switch configuration method from static IP to DHCP (automatic). This process may cause some issues with identifying converters in LAN unless there is access to the device which is responsible for allocating IP addresses.
Keep in mind that in case of changed IP address, user needs to type new IP in the address bar and log in again.
Make sure to save all the changes with “Save and Apply” button located on the bottom of the page.

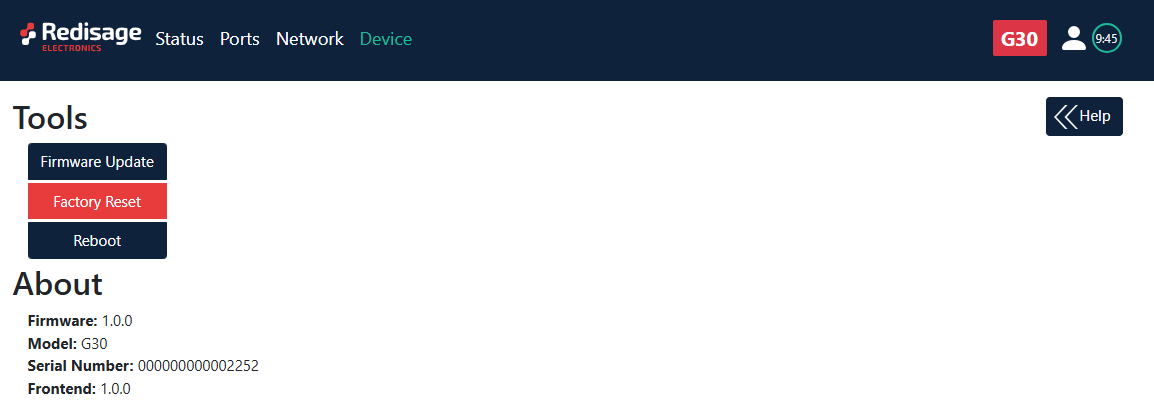

Device page
On the device page there are tools used to a firmware update, a factory reset and a device reboot. There are also some information about the device.
|
Item |
Description |
|
Firmware Update |
Update firmware. |
|
Factory Reset |
Restore default ports settings and default network configuration. |
|
Reboot |
Reboot the device. |
|
About |
Basic information about the device. |

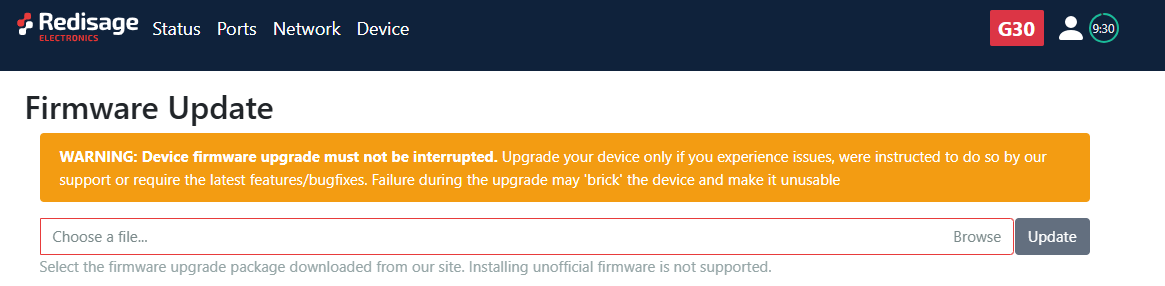

Firmware update
The device firmware update must not be interrupted. Update the device only if experiencing issues, being instructed to do so by our support or requiring the latest features/bugfixes. Failure during the update may 'brick' the device and make it unusable.
Use the modbus-mbus-mcu-esp32.fir file for a firmware update.

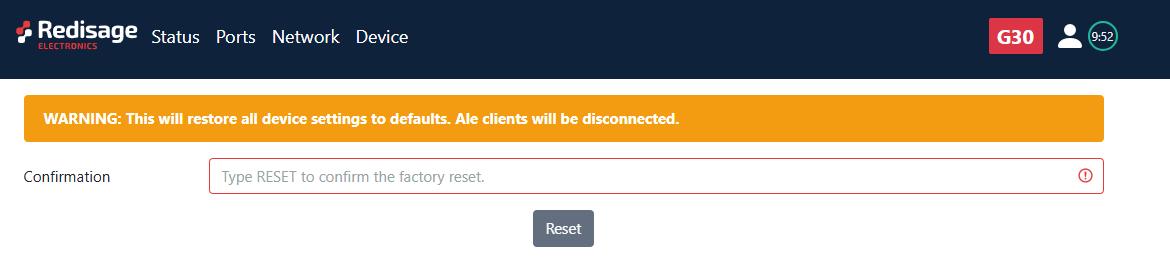

Factory reset
To restore default settings, press the red button. After that, user will be asked to type “RESET”. Then it will take a few seconds to reload the web page and restart the device. After reset, use default login details (login: admin, password: admin123; default IP: 192.168.100.100).
