Introduction

This minicomputer uses Linux operating systems and is equipped with a number of communication interfaces such as: Ethernet, USB 2.0, HDMI, GSM, RS232/RS485, 1-Wire and multiple analogue-digital inputs and outputs. It can also be configured to include a WiFi module and encryption modules that increase the security of the device. The casing enables installation on the DIN rail. The front panel has a switch, an OLED display and a joystick for manual control of the device operation.

Specifications of the device

  • Power: voltage 12-24 VDC +-20%, maximum power 25 W, reverse polarity protection
  • Processor: Broadcom BCM2837 64-bit
  • Core: Quad-Core ARM Cortex A53
  • Timing: 1.2 GHz
  • RAM: 1 GB LPDDR2
  • Flash eMMC: 8 GB/ 16 GB/ 32 GB
  • 1 x microSD connector
  • 1 x microHDMI 1.3a
  • 1 x microUSB 2.0 HOST / OTG, max. 500 mA
  • 1 x USB-A 2.0 HOST, max. 1 A
  • 1 x modem GSM SIM7600E + microSIM
  • 1 x 1-Wire
  • 7 x DIO -binary input/output, max. 30 V
  • 4 x UIO - universal analogue-digital input/output (temperature measurement with sensors for ex.: Pt1000, Ni1000, KTY, NTC, current, voltage and resistance), max. 20 V
  • 5 x DI - binary input (3 x DI), max. 30 V
  • 2 x RS232/RS485 baudrate 50-115200 bps
  • 2 x RS485 baudrate 50-115200 bps
  • 1 x Ethernet 10/100 Mbps - RJ45 connector
  • 1 x WiFi (optional)
  • 1 x secure element (optional)
  • 1 x display OLED 0.87" 128x32 px black&white
  • RTC, buzzer, EEPROM
  • Hardware watchdog

Dimensions of the device

The space that the device occupies can be approximated to a cube of following dimensions: 119 mm x 101 mm x 22.5 mmmm.

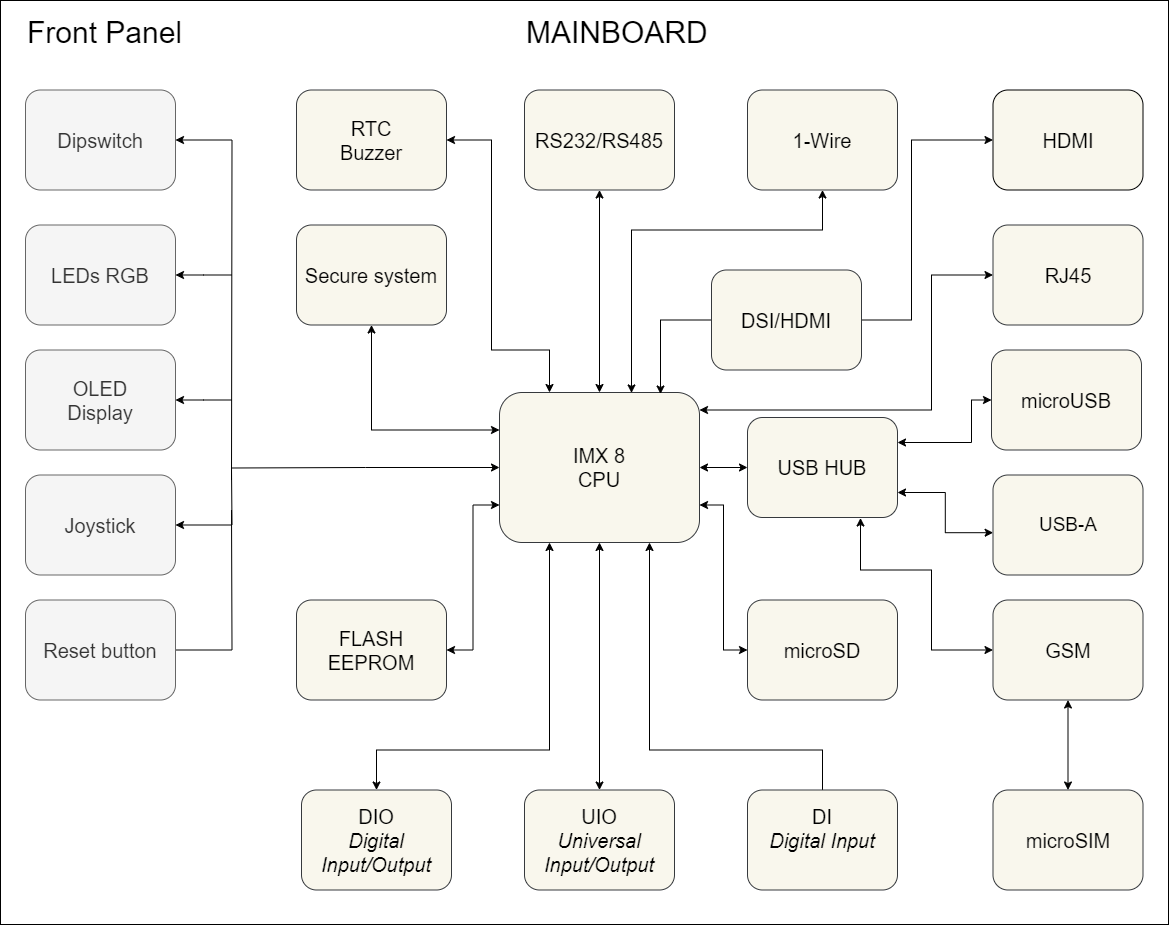

Simplified block diagram
